EHU Reinforcing Kit for BigIR/StealthIR (Plastic Saddles)

$233.77

SKU: 72-0044-12 Category:

Description

This high wind kit now includes plastic saddle clamps instead of aluminum saddle clamps in order to help prevent arcing from occurring when using loading coils near there maximum power output. It is highly recommended to use this kit if using a loading coil along with the new fiberglass mounting post (this also reduces possibility of arcing from high power).



This kit is included with all new BigIR MK IV’s and StealthIR’s. It is available here as a standalone kit if you need to upgrade an older BigIR.

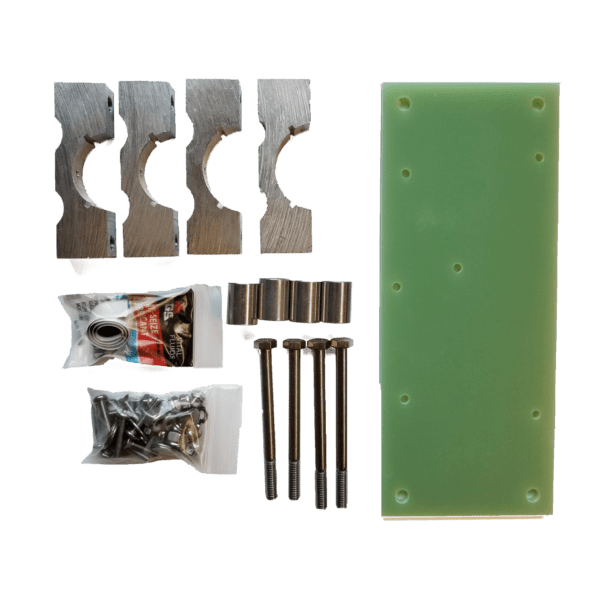

Kit Contents
Item Description Qty Per
09-1022 Coax Seal, 12′ x 1/2″.  8″
10-1021-54 Reinforcing Plate, for High wind kit EHU, 10-7/16″ x 4-1/4″ x 1/4″ 1
10-1028-01 Anti-seize single packets, TMP-1 1
10-1611-51 Plastic Saddle, 2″ – BigIR/StealthIR 2
10-1611-31 Plastic Saddle, 1.75″ medium – BigIR/StealthIR 2
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S 4
60-0018 Washer, 10-32, Flat, S/S 22
60-0019 Nut, 10-32, Nylock, S/S 10
60-0033 Washer, 5/16″, Flat, S/S 4
60-0046 Nut, 5/16″ -18, Nylock, S/S 4
60-0115 Bolt, 5/16″ x 4-1/2″, Hex Head, S/S 4
60-0071 Screw, 10-32 x 1″, Panhead, Phillips, S/S 5
10-1614-01 Plastic Saddle Reinforcement Plate 2
60-0017-10 Screw, 10-32 x 7/8″, Flathead, Phillips 1

Additional information

Weight 8 lbs
Dimensions 6 × 12.3 × 12.3 in
