Hardware Kits

Hardware Kits

$43.55 – $936.48

SKU: N/A Categories: ,

Description

72-0003-21 SmallIR Hardware

Item Description Line Instructions Qty Per
60-1006-22 QUICK DISCONNECT, 1-1/2″ to 1-1/4″, Fernco   2
72-0054-01 Kit, EHU Lid Hardware   1
09-1022 Coax Seal, 12′ x 1/2″.  8″ piece 1
10-1028-01 Anti-seize single packets, TMP-1   1
10-1059-01 Polyolefin Heat Shrink 1-1/2″ x 3″   3
10-1105-11 Vertical Pole Rain Cap   1

72-0004-01 4E Boom Assembly Hardware

Item Description Qty Per
60-0006  Saddle Set, 2-1/2″ U-Bolt, 304 Stainless Steel, 3/8″-16 Thread Size, 2-11/16″ ID 2
60-0029 Bolt, 1/4″-20 x 3″, Hex Head, S/S 2
60-0030 Nut, 1/4″-20, Nylock, S/S (5c) 10
60-0041 Washer, 1/4″, Flat (5c) 50
60-0046 Nut, 5/16″ -18, Nylock, S/S 8
60-0050 Nut, 3/8″, S/S, Nylock 4
60-0063 Bolt, 1/4″-20 3-1/4″, S/S 4
60-0100 Bolt, 1/4 -20 X 3-1/2″, hex head, S/S 4
60-0004 U-Bolt with saddle set, 2″, complete, S/S, 3-1/4″ OAL, 1-1/4″ of Thread 4

72-0004-02 4E Truss Assembly Hardware

Item Description Qty Per
21-8000 Phillystran, .125″ 1200I (Price/Cost per Foot) 26ft
60-0034 Washer, 3/8″, Flat, S/S 2
60-0037-21 Eyebolt, 5/16″ x 4″, S/S 3
60-0042 Plate, 2″ flat with holes, S/S 1
60-0045 Wire Clips, 3/16″, H galvanized, Phillystran truss clamps 16
60-0046 Nut, 5/16″ -18, Nylock, S/S 7
60-0048 Thimble, 3/16″, H Galvanized, (Used on phillystran truss) 4
60-0050 Nut, 3/8″, S/S, Nylock 3
60-0083 Turnbuckle, 1/4″ x 4″, Eye to Eye, S/S 2
60-0085 Bolt, 3/8″ x 4″, Hex Head, full thread, S/S 1
60-0004 U-Bolt with saddle set, 2″, complete, S/S, 3-1/4″ OAL, 1-1/4″ of Thread 1
60-0044 Rubber cap, for 3/16 Phillystran truss cable ends

4

72-0008-11 30/40m Return Hardware

Item Description Qty Per
60-0003 U-BOLT & SADDLE, 1-3/4″  2
60-0046 Nut, 5/16″ -18, Nylock, S/S 4

72-0008-21 30/40m Return Hardware

Item Description Qty Per
60-0003 U-BOLT & SADDLE, 1-3/4″ 2
60-0046 Nut, 5/16″ -18, Nylock, S/S 4
60-0091 Bolt, 1/4″-20 x 3-3/4″, hex head, S/S 2
60-0041 Washer, 1/4″, Flat (5c) 8
60-0030 Nut, 1/4″-20, Nylock, S/S (5c) 2

72-0035-02 DB18/18E Boom Assembly Hardware

Item Description Qty Per
60-0037-21 Eyebolt, 5/16″ x 4″, S/S 1
60-0041 Washer, 1/4″, Flat (5c) 30
60-0046 Nut, 5/16″ -18, Nylock, S/S 2
60-0029 Bolt, 1/4″-20 x 3″, Hex Head, S/S 9
60-0030 Nut, 1/4″-20, Nylock, S/S (5c) 9
60-0033 Washer, 5/16″, Flat, S/S 3
60-0103 Bolt, 5/16″ X 3″, hex head, S/S  1

72-0036-02 DB18/18E Director Hardware

Item Description Qty Per
10-1601-03 Saddle, 1-3/4″ x 3/4″  12
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S (5c) 11
60-0018 Washer, 10-32, Flat, S/S (5c) 11
60-0019 Nut, 10-32, Nylock, S/S 11
60-0046 Nut, 5/16″ -18, Nylock, S/S 13
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 13

72-0037-02 DB18/18E Reflector Hardware

Item Description Qty Per
10-1601-03 Saddle, 1-3/4″ x 3/4″  12
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S (5c) 11
60-0018 Washer, 10-32, Flat, S/S (5c) 11
60-0019 Nut, 10-32, Nylock, S/S 11
60-0046 Nut, 5/16″ -18, Nylock, S/S 13
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 13

72-0038-01 DB18 Driven Hardware

Item Description Qty Per
10-1601-22 Saddle, 2″ x 3/4″  4
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S (5c) 11
60-0018 Washer, 10-32, Flat, S/S (5c) 11
60-0019 Nut, 10-32, Nylock, S/S 11
60-0046 Nut, 5/16″ -18, Nylock, S/S 4
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 4

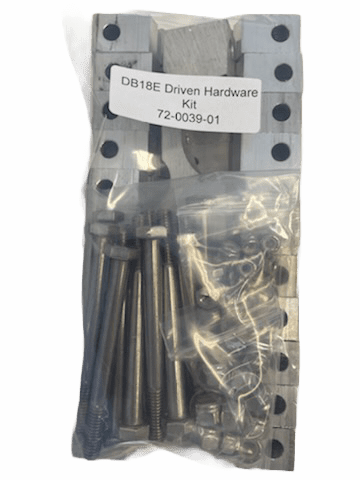

72-0039-01 DB18E Driven Hardware

Item Description Qty Per
10-1601-03 Saddle, 1-3/4″ x 3/4″  4
10-1601-22 Saddle, 2″ x 3/4″  8
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S (5c) 11
60-0018 Washer, 10-32, Flat, S/S (5c) 11
60-0019 Nut, 10-32, Nylock, S/S 11
60-0046 Nut, 5/16″ -18, Nylock, S/S 13
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 13

72-0040-01 DB18/18E Mast Plate Hardware

Item Description Qty Per
10-1601-22 Saddle, 2″ x 3/4″  12
60-0034 Washer, 3/8″, Flat, S/S 4
60-0046 Nut, 5/16″ -18, Nylock, S/S 14
60-0050 Nut, 3/8″, S/S, Nylock 3
60-0085 Bolt, 3/8″ x 4″, Hex Head, full thread, S/S 1
60-0112 Set Screw, 10-32 x 1/4″, Cup Point, S/S 50
60-0113 Screw, 10-32 x 5/8″, Panhead, Phillips, S/S 4
60-0114 Bolt, 5/16″ x 3-3/4″, Hex Head, S/S 14

72-0043-01 DB18/18E Boom Truss Hardware

Item Description Qty Per
21-8000 Phillystran, .125″ 1200I (Price/Cost per Foot) 18ft
10-1601-03 Saddle, 1-3/4″ x 3/4″  4
10-1607-11 Truss Attaching Plate V2 2
10-1613-01 AL Spacer, 1″ X 5/16″ ID X 3/4″ OD  4
60-0033 Washer, 5/16″, Flat, S/S 2
60-0045 Wire Clips, 3/16″, H galvanized, Phillystran truss clamps 16
60-0046 Nut, 5/16″ -18, Nylock, S/S 5
60-0048 Thimble, 3/16″, H Galvanized, (Used on phillystran truss) 4
60-0083 Turnbuckle, 1/4″ x 4″, Eye to Eye, S/S 2
60-0093 Bolt, 5/16″-18 X 2-3/4″, Hex Head, S/S 1
60-0115 Bolt, 5/16″ x 4-1/2″, Hex Head, S/S (1c) 4
60-0044 Rubber cap, for 3/16 Phillystran truss cable ends 4

72-0044-04 BigIR Hardware & Heat Shrinks

Item Description Qty Per
60-1006-22 QUICK DISCONNECT, 1-1/2″ to 1-1/4″, Fernco 2
60-6000-20 Hose Clamp, 1.16″ to 2″ ID, Used for BigIR, S/S 1
10-1104-11 O-Ring, 1-3/4″ x 2″, AS568B-224 EPDM 70 3
72-0009-03 Kit, Glue  1
10-1029-01 Connector Protector Cat, No CP-1, .14 oz, (silicon goop for terminals) 1
10-1059-01 Polyolefin Heat Shrink 1-1/2″ x 3″ 3
10-1059-11 Polyolefin Heat Shrink 2.05″ x 4″ 3

72-0050-11 DB11 Hardware

Item Description Qty Per
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S (5c) 32
60-0018 Washer, 10-32, Flat, S/S (5c) 34
60-0019 Nut, 10-32, Nylock, S/S 34
60-0030 Nut, 1/4″-20, Nylock, S/S (5c) 30
60-0041 Washer, 1/4″, Flat (5c) 18
60-0046 Nut, 5/16″ -18, Nylock, S/S 30
60-0062 Bolt, 1/4″ -20 2-3/4″, S/S 5
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 9
60-0075 Bolt, 5/16″ X 3-1/4″, S/S 21
60-0112 Set Screw, 10-32 x 1/4″, Cup Point, S/S 11
60-0113 Screw, 10-32 x 5/8″, Panhead, Phillips, S/S 2
60-0140 Bolt, 1/4-20 x 5/8″, Hex, S/S (1c) 25

72-0052-11 DB11 Saddle

Item Description Qty Per
10-1601-03 Saddle, 1-3/4″ x 3/4″  24
10-1601-22 Saddle, 2″ x 3/4″  4
10-1152-11 DB11 Return Bracket, Top Plate 6

72-0060-01 Urban Beam Loop Hardware

Item Description Qty Per
60-0014 Nut, 6-32 Nylock 53
60-0016 Washer, 6-32, Flat  53
60-0186 Screw, 6-32 x 2″, 18-8 SS, Button Socket CS 53
10-1155-01 Sweep Clamp, SCH-160 Clamp half 16
09-1025 conical grinding stone, 3/4″, (ENCO) 1
10-1702-01 Loop Splice, 5″, UrbanBeam  2
60-6000-50 Hose Clamps, Type “M” (.312 wide), #10, S/S 6
60-9000 Turn Key, Long Arm Hex Tip 5/64″ 1
09-0013-CUT 3M adhesive grip tape, 1″ x 2-1/4″  6

72-0061-01 Urban Beam Mast Plate Hardware

Item Description Qty Per
10-1601-03 Saddle, 1-3/4″ x 3/4″  4
10-1601-22 Saddle, 2″ x 3/4″  4
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 4
60-0114 Bolt, 5/16″ x 3-3/4″, Hex Head, S/S 4
60-0046 Nut, 5/16″ -18, Nylock, S/S 8
60-0112 Set Screw, 10-32 x 1/4″, Cup Point, S/S 5

72-0062-01 UB Element Hardware

Item Description Qty Per
72-0054-21 Kit, EHU DB Plate Hardware 2
60-0046 Nut, 5/16″ -18, Nylock, S/S 8
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 8
10-1601-03 Saddle, 1-3/4″ x 3/4″  8

72-0100 DB36 Hardware Box

Item Description Qty Per
60-0014-01 Screw, 6-32 X 7/8″, Panhead  18
60-0014 Nut, 6-32 Nylock 18
60-0112 Set Screw, 10-32 x 1/4″, Cup Point, S/S 30
60-0113 Screw, 10-32 x 5/8″, Panhead, Phillips, S/S 5
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S (5c) 40
60-0017-10 Screw, 10-32 x 7/8″, Flathead, Phillips 2
60-0101 Screw, 10-32 x 3/4″, Panhead, Phillips, Machine, with Self-Locking Patch, S/S 4
60-0018 Washer, 10-32, Flat, S/S (5c) 46
60-0019 Nut, 10-32, Nylock, S/S 42
60-0110 Bolt, 1/4″-20 x 1-1/4″, S/S  1
60-0029 Bolt, 1/4″-20 x 3″, Hex Head, S/S 5
60-0063 Bolt, 1/4″-20 3-1/4″, S/S 5
60-0100 Bolt, 1/4 -20 X 3-1/2″, hex head, S/S 5
60-0041 Washer, 1/4″, Flat (5c) 65
60-0030 Nut, 1/4″-20, Nylock, S/S (5c) 16
60-0103 Bolt, 5/16″ X 3″, hex head, S/S  1
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 40
60-0114 Bolt, 5/16″ x 3-3/4″, Hex Head, S/S 20
60-0066 Bolt, 5/16″ x 4″, S/S  9
60-0115 Bolt, 5/16″ x 4-1/2″, Hex Head, S/S (1c) 9
60-0046 Nut, 5/16″ -18, Nylock, S/S 76
60-0033 Washer, 5/16″, Flat, S/S 5
60-0145 EYEBOLT, 3/8″ x 4-1/2″, forged, S/S  1
60-0034 Washer, 3/8″, Flat, S/S 7
60-0050 Nut, 3/8″, S/S, Nylock 1
60-0142 Tap Bolt, 7/16″-14 x 5″, HEX, S/S (all thread) 1
60-0143 Nut, 7/16″ NYLOCK 1
60-0160 Lockwasher, 7/16″, S/S 2
60-0161 Nut, 7/16″, Regular, S/S 2
60-0144 Washer, 7/16″, Flat, Heavy duty, Galvanized .104″ thick 4
60-0157 Wire Clips, 1/8″, galvanized 4
60-0158 Thimble, 1/8″, Heavy galvanized 2
60-0045 Wire Clips, 3/16″, H galvanized, Phillystran truss clamps 16
60-0048 Thimble, 3/16″, H Galvanized, (Used on phillystran truss) 4
10-1613-01 AL Spacer, 1″ X 5/16″ ID X 3/4″ OD  4
10-1613-11 AL Spacer, 1/4″ X 5/16″ ID X 3/4″ OD  12
60-6000-15 Hose clamp, #16, S/S 2
60-0083 Turnbuckle, 1/4″ x 4″, Eye to Eye, S/S 2
60-0159 Turnbuckle, 5/16″ x 8″, Eye to Eye, S/S 2
10-1606-01 Element support plate, 2-1/4″  2
10-1607-11 Truss Attaching Plate V2 2

72-0102 DB36 Saddle Box

Item Description Qty Per
10-1601-03 Saddle, 1-3/4″ x 3/4″  28
10-1601-22 Saddle, 2″ x 3/4″  28
10-1601-32 Saddle, 2-1/4″ x 3/4″  10
10-1601-41 Saddle, 2-1/2″ 4

72-0110 DB42 Hardware Box

Item Description Qty Per
60-0014-01 Screw, 6-32 X 7/8″, Panhead  20
60-0014 Nut, 6-32 Nylock 20
60-0112 Set Screw, 10-32 x 1/4″, Cup Point, S/S 35
60-0113 Screw, 10-32 x 5/8″, Panhead, Phillips, S/S 6
60-0017 Screw, 10-32 x 3/4″, Panhead, S/S (5c) 50
60-0017-10 Screw, 10-32 x 7/8″, Flathead, Phillips 3
60-0101 Screw, 10-32 x 3/4″, Panhead, Phillips, Machine, with Self-Locking Patch, S/S 5
60-0018 Washer, 10-32, Flat, S/S (5c) 60
60-0019 Nut, 10-32, Nylock, S/S 55
60-0110 Bolt, 1/4″-20 x 1-1/4″, S/S  1
60-0029 Bolt, 1/4″-20 x 3″, Hex Head, S/S 5
60-0063 Bolt, 1/4″-20 3-1/4″, S/S 5
60-0100 Bolt, 1/4 -20 X 3-1/2″, hex head, S/S 5
60-0041 Washer, 1/4″, Flat (5c) 70
60-0030 Nut, 1/4″-20, Nylock, S/S (5c) 20
60-0075 Bolt, 5/16″ X 3-1/4″, S/S 32
60-0065 Bolt, 5/16″ x 3-1/2″, S/S (1c) 13
60-0114 Bolt, 5/16″ x 3-3/4″, Hex Head, S/S 17
60-0066 Bolt, 5/16″ x 4″, S/S  17
60-0115 Bolt, 5/16″ x 4-1/2″, Hex Head, S/S (1c) 9
60-0141 Bolt, 5/16″-18 x 5″, Hex, S/S 7
60-0046 Nut, 5/16″ -18, Nylock, S/S 100
60-0033 Washer, 5/16″, Flat, S/S 10
60-0151 Eye Bolt, 3/8″ x 2-1/2″, SS 2
60-0145 EYEBOLT, 3/8″ x 4-1/2″, forged, S/S  1
60-0034 Washer, 3/8″, Flat, S/S 3
60-0152 Bolt, 3/8″ x 1-3/4″, hex head 2
60-0050 Nut, 3/8″, S/S, Nylock 6
60-0142 Tap Bolt, 7/16″-14 x 5″, HEX, S/S (all thread) 1
60-0143 Nut, 7/16″ NYLOCK 1
60-0160 Lockwasher, 7/16″, S/S 2
60-0161 Nut, 7/16″, Regular, S/S 2
60-0144 Washer, 7/16″, Flat, Heavy duty, Galvanized .104″ thick 8
60-0157 Wire Clips, 1/8″, galvanized 4
60-0158 Thimble, 1/8″, Heavy galvanized 2
60-0045 Wire Clips, 3/16″, H galvanized, Phillystran truss clamps 32
60-0048 Thimble, 3/16″, H Galvanized, (Used on phillystran truss) 8
10-1613-01 AL Spacer, 1″ X 5/16″ ID X 3/4″ OD  4
10-1613-11 AL Spacer, 1/4″ X 5/16″ ID X 3/4″ OD  16
60-0044 Rubber cap, for 3/16 Phillystran truss cable ends 8
60-6000-15 Hose clamp, #16, S/S 2
60-0083 Turnbuckle, 1/4″ x 4″, Eye to Eye, S/S 2
60-0070 Turnbuckle, 3/8″ x 6″, Eye and Eye 4

72-0112 DB42 Saddle Box

Item Description Qty Per
10-1601-03 Saddle, 1-3/4″ x 3/4″  36
10-1601-22 Saddle, 2″ x 3/4″  28
10-1601-32 Saddle, 2-1/4″ x 3/4″  4
10-1601-41 Saddle, 2-1/2″ 6
10-1601-61 Saddle, 3″ 10

Additional information

Weight 5 lbs
Dimensions 10 × 6 × 6 in
Hardware Kits

Kit, SmallIR Hardware, Kit, 4E Boom Assembly Hardware, Kit, 4E Truss Assembly Hardware, Kit, Kit, 30/40m Return Hardware, Kit, 30/40m Return Hardware, Kit, CrankIR Spare Parts, Kit, DB18/18E Boom Assembly Hardware, Kit, DB18/18E Director Hardware, Kit, DB18/18E Reflector Hardware, Kit, DB18 Driven Hardware, Kit, DB18E Driven Hardware, Kit, DB18/18E Mast Plate, Kit, DB18/18E Boom Truss, Kit, BigIR Hardware/Heat Shrink, Kit, DB11 Hardware, Kit, DB11 Saddle, Kit, Urban Beam Loop Hardware, Kit, Urban Beam Mast Plate, Kit, Urban Beam Element Hardware, Kit, DB36 Hardware Box, Kit, DB36 Saddle Box, Kit, DB42 Hardware Box, Kit, DB42 Saddle Box

Related Accessories
